What is a mushroom head square neck bolt, and why is this type unique compared to other bolts of different styles?
Mushroom head square neck bolts are construction fasteners widely used in manufacturing industries. It looks a bit unique: the head of the insect is round, and it could be compared to a small dome of a mushroom; the part of the insect’s body just under the head is called the neck, and its shape is square. The square-shaped neck is very important as it prevents the bolt from rotating during installation, giving more secure joints. Mushroom Head Square Neck Bolts are different from hexagonal-headed bolts and are less likely to loosen up during vibrations; this makes them ideal for use where stability and reliability are paramount. They differ from all other forms of bolts by their design and their functional benefits.
Mushroom Head Square Neck Bolts, Mushroom Head Square Neck Bolts DIN 603, Mushroom Head Square Neck Carriage Bolts, ASME B18.2.1 Mushroom Head Square Neck Bolts, Stainless Steel Mushroom Head Square Neck Bolts, Mushroom Head Square Neck Bolts Supplier In Mumbai, India.
Table Of Content
About Mushroom Head Square Neck Bolts
Mushroom Head Square Neck Bolts Specification
Stock Availability of Mushroom Head Square Neck Bolts
Mushroom Head Square Neck Bolts Ready Stock
Mushroom Head Square Neck Bolts Applications and Uses
Supply & Export Destinations of Mushroom Head Square Neck Bolts
High Tensile Mushroom Head Square Neck Bolts, ASTM A193 Mushroom Head Square Neck Bolt Suppliers, Mild Steel Mushroom Head Square Neck Bolts, SS Mushroom Head Square Neck Bolts, Mushroom Head Square Neck Bolts Manufacturers, Mushroom Head Square Neck Bolts Exporter In India.
Where are mushroom head square neck bolts commonly used?
Because of their design, mushroom head square neck bolts are useful in different industries. This kind of bolt is widely used in the construction industry, especially in timber frame construction and woodworking industries. They cannot rotate when tightening due to the square neck, thus ensuring proper interconnection of wooden parts.
The Mushroom Head Square Neck Bolts are common in automotive and transportation applications to make highly durable connections for car frames, suspensions and motors. Their resistance to vibration-induced loosening makes them very useful. Whether it is agricultural machines or playgrounds, bolts can be relied on to offer fastening solutions that are versatile across many areas.
What are the main advantages of a mushroom head square neck bolt?
As highlighted, the advantages of mushroom head square neck bolts are pegged on the design of the bolts. It has a square neck that does not twist during setting to give a good and tight fit. This is especially true since they relapse to a loose state because of vibrations after some time has elapsed. Further, it has a mushroom-head shape on one of its parts making it have a specific superficial appearance good for visible application in various projects.
Mushroom Head Square Neck Bolts Specification
| Dimensional Standards | ANSI B18.2.1, DIN-603/IS:2609/BS-4933/AS-1390/ISO-8677 |
|---|---|
| Metric Size | M10 to M100 |
| Imperial Size | 3/8 to 8" |
| Threads | UNC, UNF, ISO, BSW & ACME. |
| Length | 3/8" to 8″(ASME B18.5) |
| Standards | ASME,BS,DIN,ISO,UNI,DIN-EN |
| Bolts Types | Mushroom Head Square Neck Bolts, Carriage Bolts, Cup Square Bolts |
| Threads | METRIC, BSW, UNC, UNF, BSF or as required |
| Unified Thread Standard (UTS) | UNC, UNF, NPT, UNS, UNEF, NPTF |
| Application | Wind Tower, Nuclear Power, Railway, Automotive Industry, Construction, Electronic Industry |
| Bolts Packaging | Cartoon Box / Wooden Pallet / Wooden Box / Thread Protector |
| Bolts Forming | Hot Forged Bolts & Cold Forged Bolts |
| Certification | Dual Certified As per ASTM & ASME Codes |
MS Mushroom Head Square Neck Bolts, Alloy Steel Mushroom Head Square Neck Bolts Latest Price, DIN 603 - Square Neck Bolts, ISO 8677 Mushroom Head Square Neck Bolts, LTCS Mushroom Head Square Neck Bolt with Nut, High Tensile Steel Mushroom Head Square Neck Bolts Stockist In Mumbai.
“View Mushroom Head Square Neck Bolts Dimensions, Contact us today to know Mushroom Head Square Neck Bolts best offers & prices.”

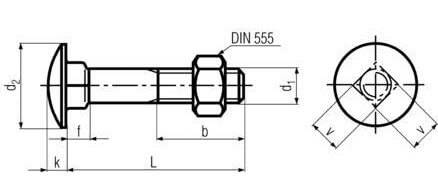

Mushroom Head Square Neck Bolts Dimensions DIN 603 / ISO 8677
| Nom. Dia. (d) | M6 | M8 | M10 | M12 | M16 | M20 | |
| Thread Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| Thread Length (b) | L < 125mm | 18 | 22 | 26 | 30 | 38 | 46 |
| 125-200mm | 24 | 28 | 32 | 36 | 44 | 52 | |
| L > 200mm | – | 41 | 45 | 49 | 57 | 65 | |
| dk | Max. | 16.55 | 20.65 | 24.65 | 30.65 | 38.8 | 46.8 |
| f | Max. | 4.6 | 5.6 | 6.6 | 8.75 | 12.9 | 15.9 |
| k | Max. | 3.88 | 4.88 | 5.38 | 6.95 | 8.95 | 11.05 |
| v | Max. | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 |
| L | WEIGHT IN KG/1000 PCS | ||||||
| 16 | 6.90 | ||||||
| 20 | 7.60 | 13.80 | 22.70 | ||||
| 25 | 8.50 | 15.40 | 25.20 | ||||
| 30 | 9.60 | 17.00 | 27.70 | 45.70 | |||
| 35 | 10.70 | 19.00 | 30.20 | 49.40 | |||
| 40 | 11.80 | 21.00 | 32.70 | 53.10 | |||
| 45 | 12.90 | 23.00 | 35.80 | 56.80 | |||
| 50 | 14.00 | 25.00 | 38.90 | 61.20 | 119.00 | ||
| 55 | 15.10 | 26.90 | 42.00 | 65.60 | 126.00 | ||
| 60 | 16.20 | 28.90 | 45.10 | 70.00 | 133.00 | ||
| 65 | 17.30 | 30.90 | 48.20 | 74.40 | 141.00 | ||
| 70 | 18.40 | 32.90 | 51.30 | 78.80 | 149.00 | 247.00 | |
| 80 | 20.60 | 36.80 | 57.50 | 87.00 | 165.00 | 272.00 | |
| 90 | 22.80 | 40.80 | 63.70 | 96.00 | 181.00 | 297.00 | |
| 100 | 25.00 | 44.80 | 69.90 | 105.00 | 197.00 | 322.00 | |
| 110 | 27.20 | 48.80 | 76.10 | 114.00 | 213.00 | 347.00 | |
| 120 | 29.40 | 52.80 | 82.30 | 123.00 | 229.00 | 372.00 | |
| 130 | 31.60 | 56.80 | 88.50 | 132.00 | 245.00 | 397.00 | |
| 140 | 32.80 | 60.80 | 95.00 | 141.00 | 261.00 | 422.00 | |
| 150 | 35.00 | 64.80 | 101.00 | 150.00 | 277.00 | 447.00 | |
| 160 | 107.00 | 159.00 | 293.00 | 497.00 | |||
| 180 | 119.00 | 177.00 | 325.00 | 547.00 | |||
| 200 | 131.00 | 195.00 | 357.00 | 597.00 | |||
DIN 603 Mushroom Head Square Neck Bolts weight chart
| LENGTH | D I A M E T E R | ||||
| 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | |
| 1" | 1.07 | 1.859 | 2.844 | 4.322 | 6.165 |
| 1.1/4" | 1.243 | 2.05 | 3.125 | 4.708 | 6.667 |
| 1.1/2" | 1.397 | 2.335 | 3.492 | 5.102 | 7.163 |
| 1.3/4" | 1.551 | 2.581 | 3.846 | 5.631 | 7.776 |
| 2" | 1.706 | 2.825 | 4.198 | 6.112 | 8.432 |
| 2.1/4" | 1.864 | 3.071 | 4.554 | 6.588 | 9.058 |
| 2.1/2" | 2.023 | 3.316 | 4.907 | 7.072 | 9.671 |
| 2.3/4" | 2.182 | 3.561 | 5.258 | 7.564 | 10.309 |
| 3" | 2.34 | 3.805 | 5.612 | 8.039 | 10.941 |
| 3.1/2" | 2.653 | 4.296 | 6.274 | 8.993 | 12.225 |
| 4" | 2.971 | 4.785 | 7.022 | 9.96 | 13.477 |
| 4.1/2" | 3.287 | 5.274 | 7.728 | 10.917 | 14.706 |
| 5" | 3.605 | 5.767 | 8.446 | 11.905 | 15.974 |
| 5.1/2" | 3.922 | 6.258 | 9.158 | 12.853 | 17.241 |
| 6" | 4.241 | 6.748 | 9.862 | 13.812 | 18.519 |
| 7" | 15.674 | 20.921 | |||
| 8" | 17.606 | 23.364 | |||
Weight in kg per 100 Pcs in MM sizes.
| Length | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| 16 | 4 | 6.9 | |||||
| 20 | 4.5 | 7.6 | 13.8 | 22.7 | |||
| 25 | 5.1 | 8.5 | 15.4 | 25.2 | |||
| 30 | 5.9 | 9.6 | 17 | 27.7 | 45.7 | ||
| 35 | 6.7 | 10.7 | 19 | 30.2 | 49.4 | ||
| 40 | 7.5 | 11.8 | 21 | 32.7 | 53.1 | ||
| 45 | 8.3 | 12.9 | 23 | 35.8 | 56.8 | ||
| 50 | 9.1 | 14 | 25 | 38.9 | 61.2 | 119 | |
| 55 | 9.9 | 15.1 | 26.9 | 42 | 65.6 | 126 | |
| 60 | 10.7 | 16.2 | 28.9 | 45.1 | 70 | 133 | |
| 65 | 11.5 | 17.3 |
- Mushroom Head Square Neck Bolts Supplier in India
- High Tensile (HT) Mushroom Head Square Neck Bolts
- Mushroom Head Square Neck Bolts Manufacturer in India
- DIN 603 SS Square Head Coach Bolts
- Duplex Steel 2205 Mushroom Head Square Neck Bolts
- 321 Stainless Steel Mushroom Head Square Neck Bolts
- Mushroom Head Square Neck Carriage Bolts Stockist In Mumbai
- DIN 603 Mushroom Head Square Neck Carriage Bolts
- Stainless Steel Cup Square Bolts
- Super Duplex 2507 Mushroom Head Square Neck Bolts
- AS Mushroom Head Square Neck Bolts Supplier
- SS 904L Mushroom Head Square Neck Bolts
- Buy Mushroom Head Square Neck Bolts Online At Best Price
- Mild Steel Mushroom Head Square Neck Bolts in India
- High Tensile Steel Mushroom Head Square Neck Bolts in India
- Mushroom Head Square Neck Carriage Bolts Supplier In Mumbai
- Mushroom Head Square Neck Carriage Bolt Manufacturer
Mushroom Head Square Neck Bolts in Distillery Plants
Mushroom Head Square Neck Bolts in Sugar Industries
Mushroom Head Square Neck Bolts in Process Industries
Mushroom Head Square Neck Bolts in Power Plants
Mushroom Head Square Neck Bolts in Refineries
Mushroom Head Square Neck Bolts in Petrochemical Plants
Contact Us For Any Information, Quotation & Questions Related To Mushroom Head Square Neck Bolts
Call Us :
Mail Us :
Germany
Italy
China
UK
Canada
Iran
Thailand
United States
Saudi Arabia
Kuwait
Singapore
Malaysia
UAE
South Korea
Turkey
Morocco
India
Oman
Australia
Qatar
Portugal
Japan
Russia
Costa Rica
Kazakhstan
Philippines
Egypt
Vietnam
Taiwan
Brazil
South Africa
Mexico
Bangladesh
France
Jordan
Poland
Romania
Indonesia
Ukraine
Greece
Nigeria
Spain
Czechia
Chile
Netherlands
Norway
Sri Lanka
Hong Kong
Cyprus
Colombia
Iraq
Tobago
Tobago
Myanmar
Angola
Venezuela
Surat, Granada, Riyadh, Kuwait City, Los Angeles, Cairo, New Delhi, Petaling Jaya, Indore, Haryana, Montreal, Seoul, Kanpur, Milan, Secunderabad, Karachi, Ranchi, Navi Mumbai, Busan, Coimbatore, Ulsan, Toronto, Colombo, Kolkata, Bhopal, Melbourne, Mexico City, Ludhiana, Lagos, Istanbul, Chennai, Gurgaon, Bengaluru, Manama, Pimpri-Chinchwad, Bogota, Gimhae-si, Pune, Dubai, Doha, Aberdeen, Kuala Lumpur, Algiers, Ho Chi Minh City, Vung Tau, La Victoria, Jamshedpur, Jakarta, Sharjah, New York, Edmonton, Tehran, Courbevoie, Madrid, Vadodara, Calgary, Singapore, Bangkok, Al Jubail, Lahore, Dammam, Thiruvananthapuram, Caracas, London, Atyrau, Hong Kong, Dallas, Hyderabad, Ernakulam, Jeddah , Noida, Mumbai, Houston, Chandigarh, Santiago, Ahwaz, Muscat, Jaipur, Al Khobar, Geoje-si, Faridabad , Nagpur, Thane, Perth, Howrah, Visakhapatnam, Chiyoda, Abu Dhabi, Rio de Janeiro, Hanoi, Brisbane, Baroda, Rajkot, Port-of-Spain, Ahmedabad, Ankara, Sydney, Moscow, Nashik.
Your #1 Source for Mushroom Head Square Neck Bolts
Mushroom Head Square Neck Bolts Stock Availability

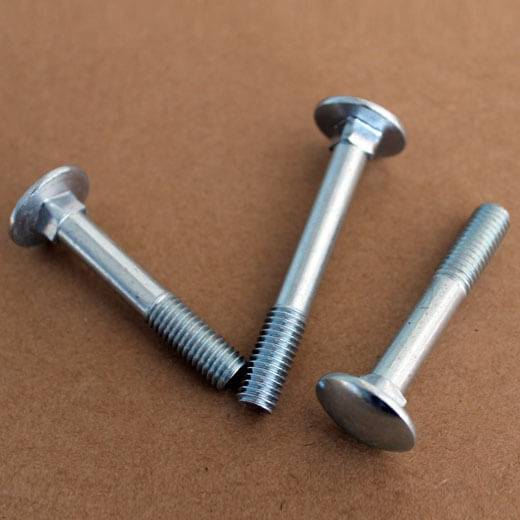

Stainless Steel Mushroom Head Square Neck Bolts
Stainless Steel Mushroom Head Square Neck Bolts Supplier, SS 304 Mushroom Head Square Neck Bolt, 1.4306 Mushroom Head Square Neck Bolts, UNS S31000 Mushroom Head Square Neck Bolts, Stainless Steel 316 Mushroom Head Square Neck Bolt, SS 316L Mushroom Head Square Neck Bolts Price, SS 317 Mushroom Head Square Neck Bolt, Stainless Steel Mushroom Head Square Neck Bolts Exporter.

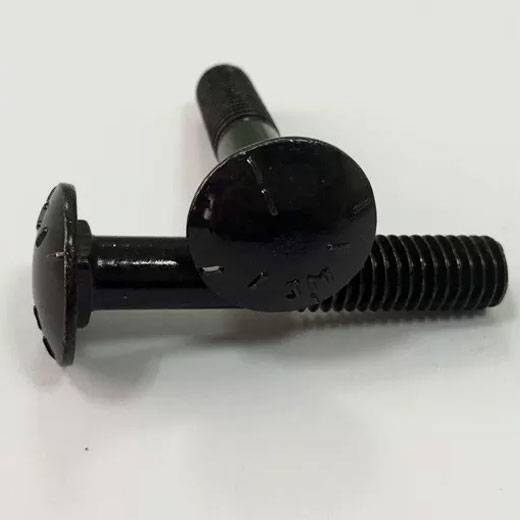

Carbon Steel Mushroom Head Square Neck Bolts
Carbon Steel Mushroom Head Square Neck Bolts Supplier, CS Mushroom Head Square Neck Bolts, Carbon Steel High Tensile Mushroom Head Square Neck Bolts, Low Temperature Carbon Steel Mushroom Head Square Neck Bolts, Mild Steel Mushroom Head Square Neck Bolts Price, MS Mushroom Head Square Neck Bolts, Carbon Steel Mushroom Head Square Neck Bolts Exporter.

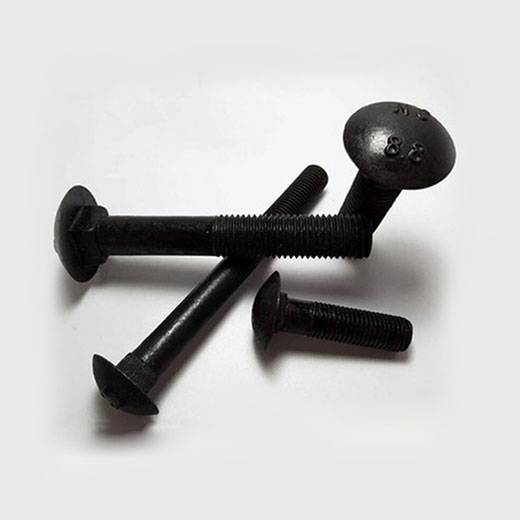

Alloy Steel Mushroom Head Square Neck Bolts
Alloy Steel Mushroom Head Square Neck Bolts Supplier, AS Mushroom Head Square Neck Bolts, Chrome Moly Steel Mushroom Head Square Neck Bolts, Cr-Mo Mushroom Head Square Neck Bolts, Chromium-molybdenum Mushroom Head Square Neck Bolts Price, Alloy Steel Mushroom Head Square Neck Bolts, Alloy Steel Mushroom Head Square Neck Bolts Exporter.

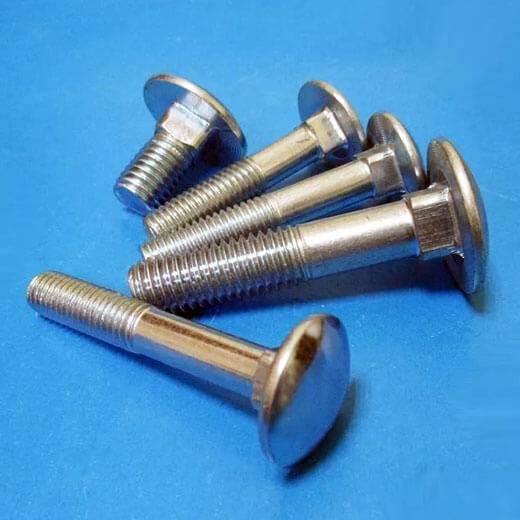

Duplex Steel Mushroom Head Square Neck Bolts
Duplex Mushroom Head Square Neck Bolts Supplier, DSS Mushroom Head Square Neck Bolts, Duplex Stainless Steel Mushroom Head Square Neck Bolts, Duplex Mushroom Head Square Neck Bolts, Duplex Steel S31803 Mushroom Head Square Neck Bolts Price, 1.4462 Mushroom Head Square Neck Bolts, UNS S32205 Mushroom Head Square Neck Bolts, DSS Mushroom Head Square Neck Bolts Exporter.

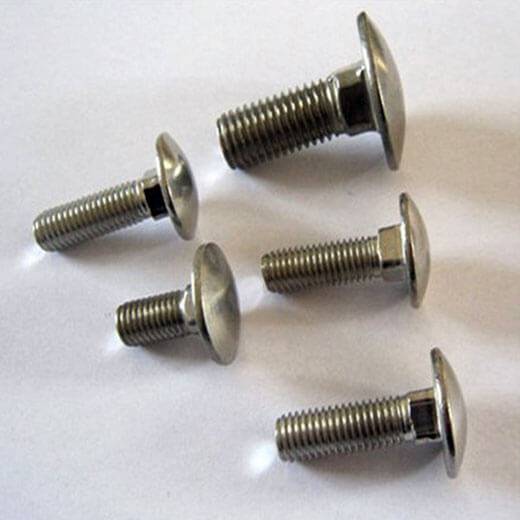

Super Duplex Steel Mushroom Head Square Neck Bolts
