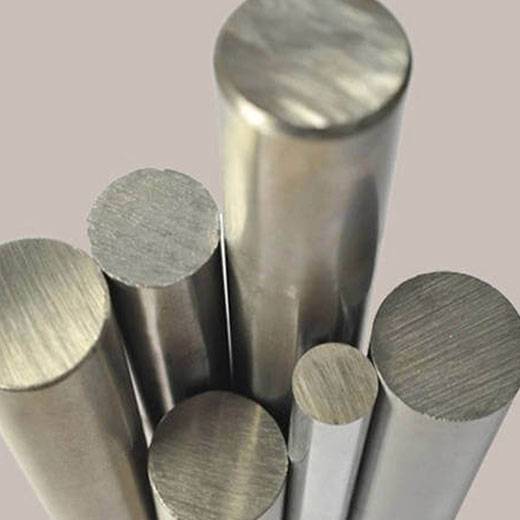

825 Incoloy Bars
Slider V2 shape

Incoloy 825 Bars & Shafts

Caliper
What elements makeup Incoloy 825 bars and shafts, and what effect do they have on their performance and properties?

Incoloy 825 bars and shafts are mainly composed of nickel, iron, chromium but the latter is added in high amounts along with molybdenum and copper. These alloying agents play a significant role in enhancing the performance and properties of Incoloy 825. Nickel has great corrosion resistance even in very aggressive environments thus it can be used for varied applications. The introduction of chromium improves its ability to withstand oxidation media including sulphuric acid and phosphoric acid. Molybdenum enhances the material’s resistance to localized corrosion such as pitting or crevice corrosion.

Alloy 825 Flat Bar, Incoloy 825 Square Bars, Incoloy 825 Round Bar, Incoloy 825 Bars, Incoloy 825 Shaft, Incoloy 825 Flat Bars, Incoloy 825 Industrial Shafts Supplier In Mumbai, India.

The inclusion of copper makes it more resistant to reducing acids and stress corrosion cracking. Additionally, controlled levels of titanium and aluminium in Incoloy 825 assist in stabilizing against sensitization at higher temperatures leading to protection from intergranular attack.

Shape 2
Shape 3
825 Incoloy Bars

Incoloy 825 Bars Price List, 825 Incoloy Precision-Ground Shaft, Incoloy Alloy 825 Square Bars, Alloy 825 Shafts, Incoloy 825 Flat Bars, Incoloy 825 Shafts Suppliers, Alloy 825 Hex Bars, 825 Incoloy Bars Exporter In India.

All these elements combined create a very strong material that can withstand any form of chemical attack due to their exceptional corrosion resistance, tensile strength and good mechanical properties that make them highly reliable for use under extreme conditions.

How does Incoloy 825 compare with other materials regarding its ability to resist corrosion or how long it lasts before wearing out?

Incoloy 825 demonstrates excellent durability and wear resistance, which gives it an edge over similar materials. It exhibits superior corrosive resistance to stainless steel, especially when exposed to sulphuric acid and phosphoric acid, as well as oxidizing or reducing agents. Unlike Inconel alloys that lose resistance towards sulphuric acid at elevated temperatures. Furthermore, there are better alternatives like Hastelloy C276 for use in acidic reduction environments than using Inconel alloys also offering improved resistance against localized forms of corrosion such as crevice/pitting corrosion.

It stands out among numerous other alloys because of its exceptional chloride stress corrosion cracking resistance. This point is worth mentioning because Incoloy 825 has exceptional durability, which enables it to withstand high temperatures and harsh chemicals over long periods without much degradation. It can therefore be used in severe corrosive environments where reliability and longevity are important.

Incoloy 825 Bars & Shafts Specification

Incoloy 825 Round Bars Specification
Standard ASTM B637/ ASME SB637
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Size 5 mm To 500 mm
Length 9 – 12 metres
Form Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

Incoloy 825 Shafts Specification
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Size 16 - 200 mm
Shape Round
Usage/Application Industrial
Length 3m to 6m
Dia 8 mm~400 mm
Technique Hot Rolled
Application Automobile Industry, Construction, Pharmaceutical / Chemical Industry, Oil & Gas Industry

Incoloy 825 Bars & Shafts Stock Availability

Incoloy 825 Hex Bar

Hex Bar

Round bars are steel bars with a smooth surface that are employed in construction projects that don't call for highly reinforced concrete works. It is frequently used on pipes, roads, small and medium-sized projects, beam and column stirrups, and stirrups.

Incoloy 825 Hex Bar, UNS N07825 Hex Bar, 825 Incoloy Alloy Hex Bars Price, Nickel Alloy 825 Hex Bar, Incoloy 825 Hex Rod, 2.4668 Hex Bar, 825 Incoloy Hexagonal Bar, Incoloy 825 Hex Bar Supplier, Incoloy 825 Hex Bar Sizes, Alloy 825 Hexagon Bars, Incoloy Alloy 825 Hex Bar Exporter.

Incoloy 825 Rectangle Bar

Rectangle Bar

Solid metal bar with a square cross section is known as a square bar. Grill fencing, fabrications, engineering components, window grills, and the construction of water and fuel tanks are only a few of its many uses.

Incoloy 825 Rectangle Rod, 2.4668 Rectangle Bar, UNS N07825 Rectangle Bar, 825 Incoloy Rectangular Bar, Incoloy 825 Rectangle Bar Supplier, Incoloy 825 Rectangle Bar Sizes, 825 Incoloy Alloy Rectangle Bars Price, Incoloy 825 Rectangle Bar, Alloy 825 Rectangular Bars, Nickel Alloy 825 Rectangle Bar, Incoloy Alloy 825 Rectangle Bar Exporter.

Incoloy 825 Square Bar

Square Bar

A flat bar is a portion having square sides of various diameters and a flat, rectangular section. This versatile steel product is distributed in the construction, engineering, manufacturing, mining, grating, fabrication, and many other industries because it is reasonably priced.

Incoloy 825 Square Bar, 825 Incoloy Square Bar, Nickel Alloy 825 Square Bar, Incoloy 825 Square Bar Sizes, 2.4668 Square Bar, Incoloy 825 Square Bar Supplier, 825 Incoloy Alloy Square Bars Price, Incoloy 825 Square Rod, Alloy 825 Square Bars, UNS N07825 Square Bar, Incoloy Alloy 825 Square Bar Exporter.

Incoloy 825 High Precision Shaft

High Precision Shaft

There are several applications for Incoloy hexagonal rods. The majority of the time, they are used in various structural and constructional applications. These rods are employed as equipment in a variety of industries, including chemical, food processing, marine, petroleum, sea water, etc. They are extremely adaptable.

Alloy 825 High Precision Shafts, UNS N07825 High Precision Shaft, Incoloy 825 High Precision Shaft Sizes, 825 Incoloy Alloy High Precision Shafts Price, Incoloy 825 High Precision Shaft Supplier, Incoloy 825 Square Rod, Incoloy 825 High Precision Shaft, Nickel Alloy 825 High Precision Shaft, 825 Incoloy High Precision Shaft, 2.4668 High Precision Shaft, Incoloy Alloy 825 High Precision Shaft Exporter.

Incoloy 825 Electric Motor Shaft

Electric Motor Shaft

As with hot rolled bars, forged bars are formed by heating a billet of steel until it is malleable. To get the bar to the desired rough dimensions, forging either hammers or presses the bar, which is where the techniques diverge.

Incoloy 825 Electric Motor Shaft, Alloy 825 Electric Motor Shafts, 825 Incoloy Alloy Electric Motor Shafts Price, Incoloy 825 Electric Motor Shaft Sizes, UNS N07825 Electric Motor Shaft, 2.4668 Electric Motor Shaft, Nickel Alloy 825 Electric Motor Shaft, Incoloy 825 Electric Motor Shaft Supplier, Incoloy 825 Square Rod, 825 Incoloy Electric Motor Shaft, Incoloy Alloy 825 Electric Motor Shaft Exporter.

Incoloy 825 Eccentric Shaft

Eccentric Shaft

The versatile material Incoloy rectangular bar is utilised in a variety of industries, including shipbuilding, construction, and the automobile industry. Because of its durability against oxidation and corrosion, it is frequently used in outdoor-oriented items.

Incoloy 825 Eccentric Shaft Sizes, Nickel Alloy 825 Eccentric Shaft, 825 Incoloy Eccentric Shaft, Incoloy 825 Eccentric Shaft, Incoloy 825 Square Rod, 825 Incoloy Alloy Eccentric Shafts Price, Incoloy 825 Eccentric Shaft Supplier, Alloy 825 Eccentric Shafts, 2.4668 Eccentric Shaft, UNS N07825 Eccentric Shaft, Incoloy Alloy 825 Eccentric Shaft Exporter.

Equivalent Grades Of Incoloy 825 Bars

STANDARD WERKSTOFF NR. UNS GOST AFNOR JIS BS EN OR
Incoloy 825 2.4858 N08825 ЭП703 NFE30C20DUM NCF 825 NA 16 NiCr21Mo XH38BT

Incoloy 825 Bars Price, Incoloy 825 Round Bar Weight Chart, Incoloy 825 Shafts Sizes, 825 Incoloy Alloy Round Bar Tolerances, 825 Incoloy Rods, Alloy 825 Bars Weight Calculator, 825 Incoloy Shafts Price, 825 Incoloy Shafts Stockist In Mumbai.

Processing Of Incoloy 825 Bars

Ingot

Heating, rolling & forming
Heating, rolling & forming
Quenching
Quenching
Self-Tempering
Self-Tempering
Atmospheric Cooling
Atmospheric Cooling

Continue

Bars Cutting

Products cut include Round bars, flat bars, hex bars, square bars, tubing and hollow bars, Pipe, angles, channels, beams and tees. Thickness range is 1/16″ to 28″ diameter

Bars Production Cutting

We can provide production cutting for product diameters up to 4″. We utilize production equipment to achieve these precision cuts with tight tolerances.

Bars Polishing

Products polished included all tubular products, with OD & ID polishing available, round bars, square bars, hex & flat bars, angles, uneven leg angles, beams, and other shapes.

“View Round Bars Dimensions & Prices, Contact us today to know Incoloy 825 Shafts best offers & prices.”

Chemical Composition of Incoloy 825 Shafts

Grade Ni Cr Fe Mb Ti Cu Mn C S Al Si
Incoloy 825 38.0 – 46.0 19.5 – 23.5 22.0 min 2.5 – 3.5 0.6 – 1.2 1.5 – 3.0 1.0 max 0.05 max 0.03 max 0.2 max 0.5 max

Mechanical Properties of Incoloy 825 Bars

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %

Incoloy 825 Bars & Shafts Ready Stock

  • Incoloy 825 Automotive Shaft
  • 825 Incoloy Hollow Bar
  • 825 Incoloy Linear Shaft
  • Incoloy 825 Angle Bars
  • Incoloy 825 Channel Bars
  • Incoloy 825 Cold Drawn Bars
  • Incoloy 825 Flat Shaft
  • Incoloy Alloy 825 Threaded Bars
  • Incoloy 825 Cold Rolled Bar
  • 825 Incoloy Alloy Grooved Shaft
  • Incoloy 825 Forged Bars
  • Alloy 825 Metallic Drive Shaft
  • Alloy 825 Precision Ground Bar
  • Incoloy Alloy 825 Flat Bar
  • 825 Incoloy Alloy Tapered Shaf
  • Incoloy 825 Triangle Bars
  • Incoloy 825 Quench and Tempered Bars
  • B637 825 Incoloy Threaded Bar
  • 825 Incoloy Half Round Bar
  • Incoloy 825 Hot Rolled Bars

825 Incoloy Shafts Applications and Uses

  • Shaft Making
  • Automobiles
  • Electric Motors & Pumps
  • Railways
  • Mining
  • Miscellaneous Fabrication
Shaft Making

Incoloy 825 Bars in Shaft Making

Automobiles

Incoloy 825 Bars & Shafts in Automobiles

Electric Motors & Pumps

Incoloy 825 Bars & Shafts in Electric Motors & Pumps

Railways

Incoloy 825 Bars & Shafts in Railways

Mining

Incoloy 825 Bars & Shafts in Mining

Miscellaneous Fabrication

Incoloy 825 Bars & Shafts in Miscellaneous Fabrication

Your #1 Source for Incoloy 825 Bars & Shafts

High Quality Alloy 825 Bars & Shafts!
