Hex Flange Nuts
Slider V2 shape

Hex Flange Nut

Caliper

Explain the advantages and benefits of using Hex Flange Nuts in different mechanical assemblies.

Hex Flange Nuts have several significant advantages and benefits. Its unique design features a flange which is a flat washer-like base that allows for larger surface areas on the load to be shared. The presence of this feature helps increase the nut’s grip on the joint, thereby reducing vibration or dynamic loosening forces that may result in loosening, hence enhancing resistance against loosening up for high-stress applications. By being constructed with washers, it eliminates extra washing process during assembly therefore making it more cost effective.

Hexagonal Flange Nut, Hex Flange Nut Standard, Hex Flange Nuts, Hex Flanged Nut, Stainless Steel Hex Flange Nuts, Hex Flange Nuts Supplier In Mumbai, India.

Shape 2
Shape 3
Hex Flange Nuts

M12 Serrated Hex Flange Nuts, Mild Steel Hex Flange Nut, SS Hex Flange Nut, M6 Flanged Hexagon Nuts, DIN 6923 Hexagon Flange Nut Suppliers, Flange Hex Nut Latest Price, Hex Flange Nuts Exporter In India.

We Caliper Overseas have positioned ourselves as the leading wholesaler and trader of Aluminum and Brass Pipes and Tubes in 2017. Our range includes Aluminium Tubes, Aluminum Alloy Sheets, Stainless Steel Round Bar among others in year 2017 itself we Caliper Overseas are uniquely positioned amongst our competitor such that we become the dominant wholesaler and trader of superior quality assortment of Aluminum & Brass Pipes & Tubes.

Moreover, these nuts can be easily fitted using conventional tools like wrenches or sockets thus one finds them easy to deal with while assembling. The gripping power is also enhanced by flanges compared with standard hexagonal nuts, which ensures the durability of the entire mechanical structure

Hex flange nuts are extremely versatile and can be used in various sectors such as automotive, aerospace, construction, and machinery. Also they are perfect for outdoor use since they have the capability to endure harsh weather conditions and they do not corrode for instance marine and agricultural equipment. Furthermore, their ability to resist thermal expansion while remaining tough has made them popular for use in high-temperature applications.

An advantage of Hex Flange Nuts is that they can prevent loosening when under heavy loads or vibrations; they also have a built-in washer to reduce friction during the tightening process. Since these nuts can be used in various industries including but not limited to automotive, aerospace, construction etc., their adoption into mechanical assemblies has led to an improvement in performance levels, lowered maintenance costs as well as increased reliability within the integrated structures.

What are some common uses of Hex Flange Nuts across different industries?

Hex flange nuts find applications in many industries due to their design features as well as associated advantages. For instance, in the automobile industry, hex flange nuts are often found in engine components, suspension systems and exhaust assemblies. In aerospace industry hex flange nuts play vital roles within major airframe structures such as wings, fuselages and control surfaces. On the other hand builders like this type of fastener because it reduces chances of shedding which is important for buildings that experience high wind or seismic activity like earthquake resistant buildings since it prevents any movement between components hence ensuring that no parts come off during any shaking motion. Similarly, this kind of fasteners give a secure hold for large machines that vibrate heavily, hence promoting safety at workplaces such as those where manufacturing takes place. Marine applications equally require products that can withstand corrosive saltwater environments

Hex Flange Nuts Specification

Hex Flange Nuts Size M4 to M16
Length of Serrated Flange Nuts 6mm-500mm
SS Flange Nuts Thread Direction Right Hand
Dia./Thread Size 5/8"-11
Width Across Flats 1-1/16"
Standard DIN934 DIN936 DIN439 DIN555 A194 2H, JIS B1190, DIN 6923
Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Manufacturing Process Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request

Hex Flange Nuts Stock Availability

Stainless Steel Hex Flange Nuts

Stainless Steel Hex Flange Nuts

Stainless Steel Hex Flange Nuts Supplier, SS 304 Hex Flange Nuts, 1.4306 Hex Flange Nuts, UNS S31000 Hex Flange Nut, Stainless Steel 316 Hex Flange Nuts, 316L SS Hex Flange Nuts Price, SS 317 Hex Flange Nuts, Stainless Steel Hex Flange Nuts Exporter.

Carbon Steel Hex Flange Nuts

Carbon Steel Hex Flange Nuts

Carbon Steel Hex Flange Nuts Supplier, CS Hex Flange Nuts, High Tensile Carbon Steel Hex Flange Nuts, Low Temperature Carbon Steel Hex Flange Nuts, Mild Steel Hex Flange Nuts Price, MS Hex Flange Nuts, Carbon Steel Hex Flange Nuts Exporter.

Alloy Steel Hex Flange Nuts

Alloy Steel Hex Flange Nuts

Alloy Steel Hex Flange Nuts Supplier, AS Hex Flange Nuts, Chrome Moly Steel Hex Flange Nuts, Cr-Mo Hex Flange Nuts, CrMo Hex Flange Nuts Price, Chromium-molybdenum Hex Flange Nuts, Alloy Steel Hex Flange Nuts Exporter.

Duplex Steel Hex Flange Nuts

Duplex Steel Hex Flange Nuts

Duplex Hex Flange Nuts Supplier, DSS Hex Flange Nuts, Duplex Stainless Steel Hex Flange Nuts, Duplex Hex Flange Nuts, Duplex Steel S31803 Hex Flange Nuts Price, 1.4462 Duplex Hex Flange Nut, UNS S32205 Hex Flange Nuts, Duplex Steel Hex Flange Nuts Exporter.

Super Duplex Steel Hex Flange Nuts

Super Duplex Steel Hex Flange Nuts

Super Duplex Hex Flange Nuts Supplier, SDSS Hex Flange Nuts, Super Duplex Stainless Steel Hex Flange Nuts, Super Duplex Hex Flange Nuts, Super Duplex S32760 Hex Flange Nuts Price, 1.4410 Super Duplex Hex Flange Nut, UNS S32750 Hex Flange Nuts, Super Duplex Steel Hex Flange Nuts Exporter.

M10 Mild Steel Hex Flange Nut, M6 Stainless Steel Hex Flange Nuts, Metric DIN 6923 Hexagon Flange Nuts, LTCS Hexagon Flange Nuts, High Tensile Steel Hex Flange Nut Stockist In Mumbai.

“View Hex Flange Nut Dimensions, Contact us today to know Hexagon Flange Nuts best offers & prices.”

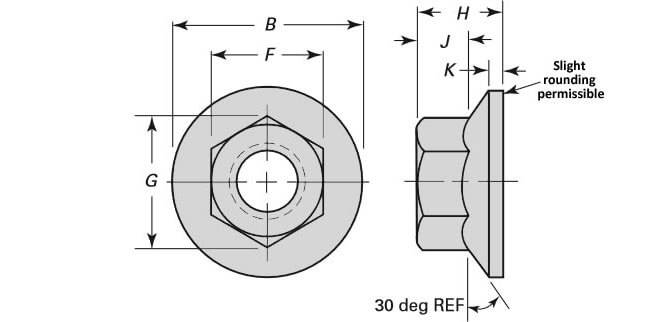

Hex Flange Nut Dimensions Table

Dimension
Nominal
Size
Basic
Major
Diameter
of
Thread
F G B H J K
Width
Across
Flats
Width
Across
Corners
Dia.
Flange
Thickness
Hex
Nut
Wrenching
Length
Flange
Thickness
min max. min. max. min. max. min. max. min. min.
Hex Flange Nuts
No.6 0.1380 0.302 0.312 0.342 0.361 0.406 0.422 0.156 0.171 0.10 0.02
8 0.1640 0.334 0.344 0.381 0.397 0.452 0.469 0.187 0.203 0.13 0.02
10 0.1900 0.365 0.375 0.416 0.433 0.480 0.500 0.203 0.219 0.13 0.03
12 0.2160 0.428 0.438 0.488 0.505 0.574 0.594 0.222 0.236 0.14 0.04
1/4 0.2500 0.428 0.438 0.488 0.505 0.574 0.594 0.222 0.236 0.14 0.04
5/16 0.3125 0.489 0.500 0.557 0.577 0.660 0.680 0.268 0.283 0.17 0.04
3/8 0.3750 0.551 0.562 0.628 0.650 0.728 0.750 0.330 0.347 0.23 0.04
7/16 0.4375 0.675 0.688 0.768 0.794 0.910 0.937 0.375 0.395 0.26 0.04
1/2 0.5000 0.736 0.750 0.840 0.866 1.000 1.031 0.437 0.458 0.31 0.05
9/16 0.5625 0.861 0.875 0.982 1.010 1.155 1.188 0.483 0.506 0.35 0.05
5/8 0.6250 0.922 0.938 1.051 1.083 1.248 1.281 0.545 0.569 0.40 0.05
3/4 0.7500 1.088 1.125 1.240 1.299 1.460 1.500 0.627 0.675 0.46 0.06
Large Hex Flange Nuts
Nominal
Size
Basic
Major
Diameter
of
Thread
F G B H J K
Width
Across
Flats
Width
Across
Corners
Dia.
Flange
Thickness
Hex
Nut
Wrenching
Length
Flange
Thickness
min max. min. max. min. max. min. max. min. min.
1/4 0.2500 0.428 0.438 0.488 0.505 0.700 0.728 0.281 0.312 0.15 0.04
5/16 0.3125 0.489 0.500 0.557 0.577 0.790 0.820 0.343 0.375 0.20 0.04
3/8 0.3750 0.551 0.562 0.628 0.650 0.885 0.915 0.390 0.406 0.24 0.04
7/16 0.4375 0.675 0.688 0.768 0.794 1.100 1.131 0.437 0.468 0.26 0.04
1/2 0.5000 0.736 0.750 0.840 0.866 1.175 1.205 0.485 0.515 0.29 0.06
9/16 0.5625 0.861 0.875 0.982 1.010 1.260 1.300 0.546 0.578 0.37 0.06
5/8 0.6250 0.922 0.938 1.051 1.083 1.280 1.360 0.600 0.640 0.42 0.06

Hex Flange Nuts Ready Stock

  • Hex Flange Nut Supplier
  • M8 Hexagon Flange Nuts
  • Hex Flange Nut Manufacturer in India
  • M16 Hexagon Flange Nuts
  • Large Hex Flange Nuts
  • Duplex Steel 2205 Hexagon Flange Nut
  • 321 Stainless Steel Hex Flange Nut
  • Hex Flange Nut Stockist In Mumbai
  • Super Duplex Steel 2507 Hex Flange Nut
  • Alloy Steel Hexagon Flange Nut Supplier
  • SS 904L Hexagon Flange Nuts
  • M14 Hexagon Flange Nuts
  • Mild Steel Hexagon Flange Nut in India
  • High Tensile Steel Hexagon Flange Nuts
  • Hex Flange Nut Supplier In India
  • Hex Flange Nuts Manufacturer

Hex Flange Nuts Applications and Uses

  • Distillery Plants
  • Sugar Industries
  • Process Industries
  • Power Plants
  • Refineries
  • Petrochemical Plants
Distillery Plants

Hex Flange Nuts in Distillery Plants

Sugar Industries

Hex Flange Nuts in Sugar Industries

Process Industries

Hex Flange Nuts in Process Industries

Power Plants

Hex Flange Nuts in Power Plants

Refineries

Hex Flange Nuts in Refineries

Petrochemical Plants

Hex Flange Nuts in Petrochemical Plants

Your #1 Source for Hex Flange Nuts

Extensive Range of Hex Flange Nuts !
