What materials are Hex Nylock Nuts commonly made from, and how does the material affect their performance?
Hex Nylock Nuts are commonly made from various materials, the most common being stainless steel, carbon steel, and nylon. Each material choice offers distinct advantages and considerations that can impact the nut's performance in different applications. Stainless steel Hex Nylock Nuts are known for their excellent corrosion resistance, making them ideal for use in environments exposed to moisture, chemicals, or harsh weather conditions. On the other hand, carbon steel Hex Nylock Nuts are favoured for their strength and durability, making them suitable for heavy-duty applications.
Nylon Hex Nylock Nuts possess excellent vibration-dampening properties and are often used when preventing self-loosening, which is critical. The material selection for Hex Nylock Nuts is vital as it determines factors such as resistance to corrosion, load-bearing capabilities, and effectiveness in maintaining a secure and reliable fastening solution.
Can Hex Nylock Nuts withstand extreme temperatures or corrosive environments?
Hex Nylock Nuts' ability to withstand extreme temperatures and corrosive environments largely depends on the material they are made from. Stainless steel Hex Nylock Nuts, renowned for their corrosion resistance, can perform well in various corrosive environments, including moisture, chemicals, and saltwater exposure. They can maintain their integrity and fastening capabilities, even in challenging conditions.
Choosing the appropriate grade of stainless steel for specific temperature ranges and environments is essential to ensure optimal performance. On the other hand, nylon Hex Nylock Nuts are not as suitable for extreme temperatures but excel in dampening vibrations and preventing self-loosening. It is crucial to consider the application's requirements and select the appropriate material to ensure the Hex Nylock Nuts perform effectively and reliably in demanding conditions.
What are the advantages of using Hex Nylock Nuts over other locking nut types?
Hex Nylock Nuts offer several advantages over other locking nut types. Their nylon insert creates a prevailing torque, effectively resisting loosening due to vibrations or external forces. This self-locking feature eliminates the need for additional tools or adhesives to prevent nut movement, making installation quicker and easier. Hex Nylock Nuts can be used in various applications, providing reliable fastening in both high and low-load scenarios. Their corrosion resistance, especially in stainless steel variants, ensures long-lasting performance in challenging environments.
| Hex Nylock Nuts Size | M30, M36, M10, M12, M8, M24, M14, 1/4” to 1-1/2” |
|---|---|
| Length | 6 MM To 500 MM |
| Standard | DIN982 DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563 |
| Material | Stainless Steel, Duplex, Super Duplex, Carbon Steel, Alloy Steel |
| Shape | Hexagonal |
| Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Manufacturing Process | Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |

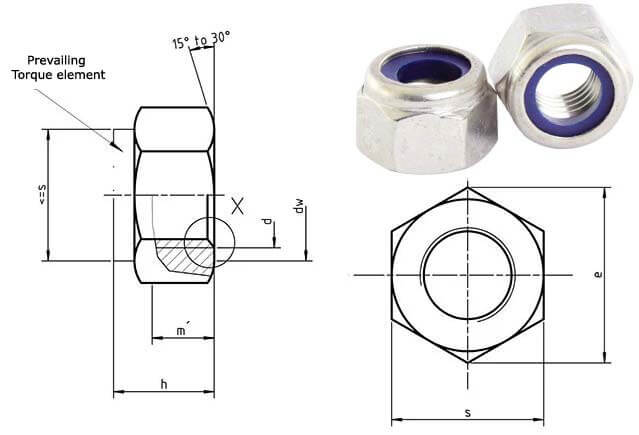

| THREAD SIZE D | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | - | M8x1 | M10x1 | M12x1,5 | M14x1,5 | M16x1,5 | M18x2 | M20x2 | M22x2 | M24x2 | ||
| - | - | - | - | M10x1,25 | M12x1,25 | - | - | M18x1,5 | M20x2 | M22x2 | - | ||
| P | 0,8 | 1 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | 2,5 | 2,5 | 3 | |
| da | min. | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| max. | 5,75 | 6,75 | 7,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 19,5 | 21,6 | 23,7 | 25,9 | |
| dw | min. | 6,9 | 8,9 | 9,6 | 11,6 | 15,6 | 17,4 | 20,5 | 22,5 | 24,9 | 27,7 | 29,5 | 33,2 |
| e | min. | 8,79 | 11,05 | 12,12 | 14,38 | 18,9 | 21,1 | 24,49 | 26,75 | 29,56 | 32,95 | 35,03 | 29,55 |
| h | max. = nominal size | 6,3 | 8 | 8,5 | 9,5 | 11,5 | 14 | 16 | 18 | 20 | 22 | 25 | 28 |
| min. | 6 | 7,7 | 8,2 | 9,14 | 11,14 | 13,64 | 15,3 | 17,3 | 19,16 | 20,7 | 23,7 | 26,7 | |
| m | min. | 4,4 | 4,9 | 6,14 | 6,44 | 8,04 | 10,37 | 12,1 | 14,1 | 15,1 | 16,9 | 18,1 | 20,2 |
| m´ | min. | 3,52 | 3,92 | 4,91 | 5,15 | 6,43 | 8,3 | 9,68 | 11,28 | 12,08 | 13,52 | 14,48 | 16,16 |
| s | max. = nominal size | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| min. | 7,78 | 9,78 | 10,73 | 12,73 | 16,73 | 19,67 | 21,67 | 23,67 | 26,16 | 29,16 | 31 | 35 | |
| Weight (7,85 kg/dm3) kg/1000pcs | 1,4 | 3,1 | 3,2 | 6 | 11,7 | 16,6 | 21 | 37,8 | 51,6 | 68 | 86 | 127 | |
DIN 982 Nylock Nut Sizes
| Metric Size | Thread Pitch (P) | Thickness / Height (h) | Width / Across Flat (S) | Width Across Corners (e) | ||
Min. |
Max. |
Min. |
Min. |
Min. |
||
| M5 | 0.8 | 6 | 6.3 | 7.78 | 8 | 8.79 |
| M6 | 1 | 7.70 | 8 | 9.78 | 10 | 11.05 |
| M8 | 1 | 9.14 | 9.5 | 12.73 | 13 | 14.38 |
| M8 | 1.25 | 9.14 | 9.5 | 12.73 | 13 | 14.38 |
| M10 | 1 | 11.14 | 11.5 | 16.73 | 17 | 18.9 |
| M10 | 1.25 | 11.14 | 11.5 | 16.73 | 17 | 18.9 |
| M10 | 1.5 | 11.14 | 11.5 | 16.73 | 17 | 18.9 |
| M12 | 1.25 | 13.64 | 14 | 18.67 | 19 | 21.1 |
| M12 | 1.5 | 13.64 | 14 | 18.67 | 19 | 21.1 |
| M12 | 1.75 | 13.64 | 14 | 18.67 | 19 | 21.1 |
| M14 | 1.5 | 15.30 | 16 | 21.67 | 22 | 24.49 |
| M14 | 2 | 15.30 | 16 | 21.67 | 22 | 24.49 |
| M16 | 1.5 | 17.30 | 18 | 23.67 | 24 | 26.75 |
| M16 | 2 | 17.30 | 18 | 23.67 | 24 | 26.75 |
| M18 | 2.5 | 19.16 | 20 | 26.18 | 27 | 29.56 |
| M20 | 1.5 | 20.7 | 22 | 29.16 | 30 | 32.95 |
| M20 | 2.5 | 20.7 | 22 | 29.16 | 30 | 32.95 |
| M22 | 2.5 | 23.7 | 25 | 31 | 32 | 35.03 |
| M24 | 3 | 26.7 | 28 | 35 | 36 | 39.55 |
DIN 982 Nylock Nut Sizes
Metric Size |
Thread Pitch (P) |
Thickness / Height (h) |
Width / Across Flat (s) |
Width Across Corners (e) |
||
Min. |
Max. |
Min. |
Min. |
Min. |
||
| M3 | 0.5 | 3.7 | 4 | 5.32 | 5.5 | 6.01 |
| M4 | 0.7 | 4.7 | 5 | 6.78 | 7 | 7.66 |
| M5 | 0.8 | 4.7 | 5 | 7.78 | 8 | 8.79 |
| M6 | 1 | 5.7 | 6 | 9.78 | 10 | 11.05 |
| M8 | 1 | 7.64 | 8 | 12.73 | 13 | 14.38 |
| M8 | 1.25 | 7.64 | 8 | 12.73 | 13 | 14.38 |
| M10 | 1 | 9.64 | 10 | 16.73 | 17 | 18.9 |
| M10 | 1.25 | 9.64 | 10 | 16.73 | 17 | 18.9 |
| M10 | 1.5 | 9.64 | 10 | 16.73 | 17 | 18.9 |
| M12 | 1.25 | 11.57 | 12 | 18.67 | 19 | 21.1 |
| M12 | 1.5 | 11.57 | 12 | 18.67 | 19 | 21.1 |
| M12 | 1.75 | 11.57 | 12 | 18.67 | 19 | 21.1 |
| M14 | 1.5 | 13.3 | 14 | 21.67 | 22 | 24.49 |
| M14 | 2 | 13.3 | 14 | 21.67 | 22 | 24.49 |
| M16 | 1.5 | 15.3 | 16 | 23.67 | 24 | 26.75 |
| M16 | 2 | 15.3 | 16 | 23.67 | 24 | 26.75 |
| M18 | 2.5 | 17.66 | 18 | 26.18 | 27 | 29.56 |
| M20 | 1.5 | 18.7 | 20 | 29.16 | 30 | 32.95 |
| M20 | 2.5 | 18.7 | 20 | 28.16 | 30 | 32.95 |
| M22 | 2.5 | 20.7 | 22 | 31 | 32 | 35.03 |
| M24 | 3 | 22.7 | 24 | 35 | 36 | 39.55 |
| M27 | 3 | 25.7 | 27 | 40 | 41 | 45.2 |
| M27 | 3.5 | 25.7 | 27 | 40 | 41 | 15.2 |
| M30 | 2 | 28.7 | 30 | 45 | 46 | 50.85 |
| M30 | 3.5 | 28.7 | 30 | 45 | 46 | 50.85 |
