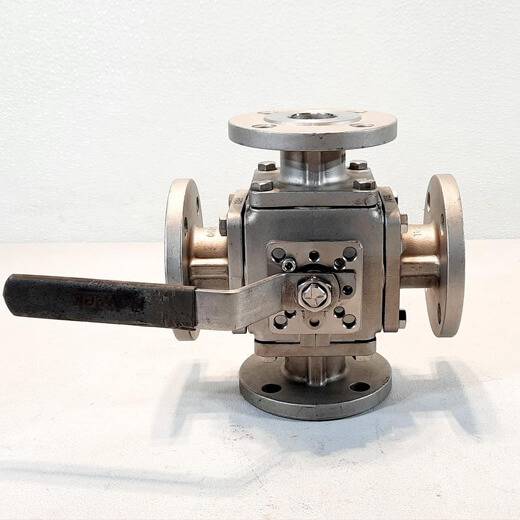

Caliper Overseas is a trusted Multi Port Ball Valve Manufacturer and Supplier in India, known for delivering high-quality industrial valve solutions. A multi-port ball valve is a specialised valve designed with more than two ports, typically in 3-way, 4-way, or 5-way designs. It ensure easy diversion, mixing, or switching of fluid flow between different pipelines using a single valve. This smart design helps in simplifying complex piping systems, minimising space usage, and reducing the number of valves needed in various industrial applications.
Multi-port Flanged Ball Valves, Multi-Port Ball Valves, Floating Multiport Ball Valves, 3-Way Ball Valve Price, 4-Way Ball Valve, 5-Way Ball Valve, Multi Port Ball Valve Supplier In Mumbai, India.
All our multi-port ball valves are produced to international standards like ASME B16.34, ISO 17292 and API 608. All of these valves have various benefits including compact size, simplicity, tight shutoff, and ruggedness. Products are also certified with Product Design Assessment (PDA) Certificate to make them reliable and perform under stressful circumstances. For high-performance and flexible flow control options, select our precisely designed multi-port ball valves.
Multi Port Floting Ball Valve, Screwed End Multi Port Ball Valve, Flanged End Multi Port Ball Valve, Reduce Bore Multi Port Ball Valve, Multi Port Ball Valve Suppliers, Regular Bore Multi Port Ball Valve, Multi Port Ball Valve Exporter In India.
Multi Port Ball Valve Specification
| Design Standards | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D |
|---|---|
| Size Range | Class 150: 1/2" to 12" (13mm to 305mm), Class 300: 1/2" to 6" (13mm to 152mm) |
| Temperature Range | -25°F to 500°F |
| Maximum Allowable Operating Pressure | ASME 150: SS 275/WCB 285 psi, ASME 300: SS 720/WCB 740 psi |
| Body Style | Compact Standard Port, Block-style Full Port |
| End Connections | Flanged Ends per ASME B16.5 |
| Ports | Full 3-Way & 4-Way with L, T & LL Ports (flow patterns available offering for 90˚, 180˚ and 360˚ operation) |
| Body Materials | Stainless Steel, Carbon Steel |
| Stem Materials | Stainless Steel |
| Seat Materials | TFM |
| Ball Materials | Stainless Steel |
| Application & uses | Mixing/blending line medias, Flow Diversion, Flow Bypass, Direct flow in/out of storage tanks, Shutoff flow from different directions |
Heavy Duty Multi Port Ball Valve, High-Quality Multi Port Ball Valve, Industrial Multi Port Ball Valve, High Pressure Multi Port Ball Valve, Threaded End Multi Port Ball Valve, Multi Port Ball Valve Stockist In Mumbai.
“View Multi Port ball valve pressure rating, Contact us today to know Multi Port Ball Valve best offers & prices.”

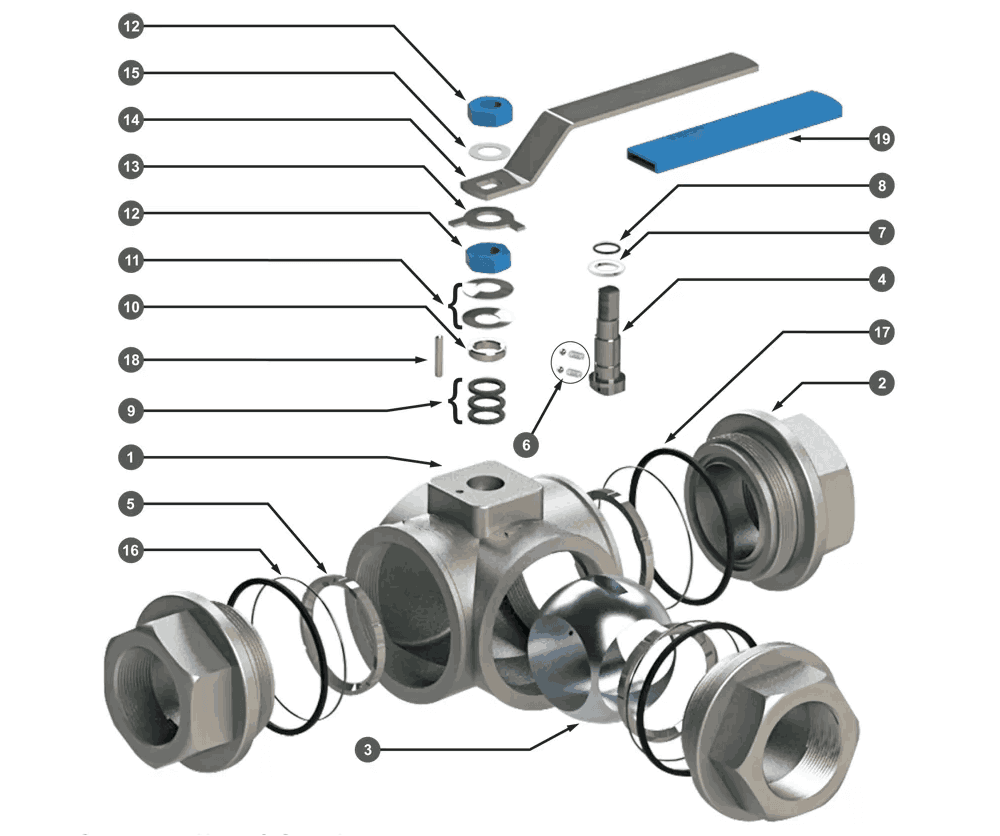

| No. | Component Name | Qty. |
|---|---|---|
| 1 | Body | 1 |
| 2 | Adaptor | 3 |
| 3 | Ball | 1 |
| 4 | Stem | 1 |
| 5 | Seat Ring | 3 |
| 6 | Anti-Static Device | 2 |
| 7 | Stem Bottom Bush | 1 |
| 8 | Stem “O” Ring | 1 |
| 9 | Gland Packing | 3 |
| 10 | Gland Bush | 1 |
| 11 | Spring Washer | 2 |
| 12 | Gland Nut | 2 |
| 13 | Lever Stopper | 1 |
| 14 | Lever | 1 |
| 15 | Indicator or Washer” Ring | 1 |
| 16 | End Piece “O” Ring | 3 |
| 17 | Gasket | 3 |
| 18 | Stopper Pin | 1 |
| 19 | Lever Grip | 1 |
| Size | L | H | E |
|---|---|---|---|
| 1/4 | 2.98 | 2.56 | 5.20 |
| 3/8 | 2.98 | 2.56 | 5.20 |
| 1/2 | 2.98 | 2.56 | 5.20 |
| 3/4 | 3.41 | 2.82 | 5.20 |
| 1 | 4.06 | 3.71 | 7.09 |
| 1-1/4 | 4.65 | 3.94 | 7.09 |
| 1-1/2 | 4.95 | 4.56 | 8.86 |
| 2 | 5.87 | 4.92 | 8.86 |
- Stainless Steel L Ports Ball Valve
- Flange End Multi Port Ball Valve
- Carbon Steel T Ports Ball Valve
- Threaded Multi Port Ball Valve
- Multi Port Ball Valve Manufacturer
- Multi Port Ball Valve Supplier
- 1500# Multi Port Ball Valve
- Screwed Multi Port Ball Valve
- Multi Port Ball Valve Stockist In Mumbai
- Multi LL Ports Valves
- Five-way Multi Port Ball Valve
- Multi Port Ball Valve Supplier In India
- Class 800 Multi Port Valves
- Four-way Multi Port Ball Valve
- Three-way Multi Port Ball Valves
- 900# Multi Port Valves
- More Durable Multi Port Ball Valves
- Multi Port Ball Valves Manufacturer in India
Multi Port Ball Valves in Distillery Plants
Multi Port Ball Valves in Sugar Industries
Multi Port Ball Valve in Process Industries
Multi Port Ball Valve in Power Plants
Multi Port Ball Valve in Refineries
Multi Port Ball Valve in Petrochemical Plants
