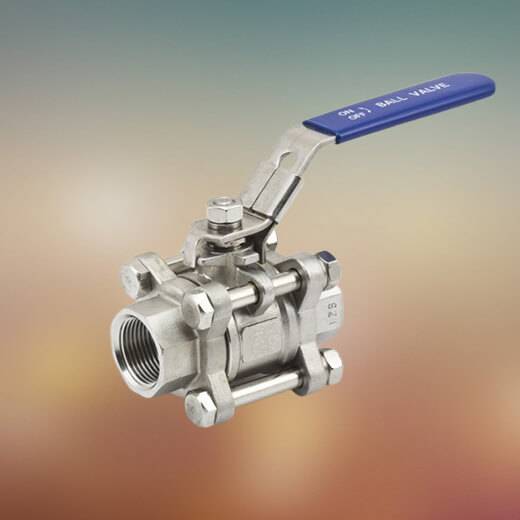

Caliper Overseas is one of the most reliable Three Piece Design Ball Valve manufacturers and supplier in India. Three Piece Design Ball Valve supplier in India, offering superior quality industrial valve, which meets international standards like BS EN ISO 17292 (BS 5351), BS EN ISO 12516 and BS EN 1983. A Three Piece Design Ball Valve thas three individual parts, like two end caps and a center body, so it is simple to install, clean and maintain without taking out the whole valve from the pipeline.
3 Piece Design Ball Valve, 3 Piece Ball Valves, Three Piece Ball Valves, 3 Piece Ball Valve Price, 3 Piece Ball Valve Manufacturers, 3 Piece Ball Valve Dimensions, Three Piece Design Ball Valve Supplier In Mumbai, India.
Our valves find extensive application across oil & gas, chemical process, food & beverage, and pharmaceutical industries. It is very durable, has leak-proof seal is maintenance friendly and offers superior flow control. Specially designed for both high-pressure and low-pressure applications, it guarantees consistent performance in harsh operating conditions. To ensure long-lasting and effective flow solutions, contact our team now and select the finest in quality and service.
Flanged End Three Piece Ball Valve, Three Piece Floting Ball Valve, Screwed End Three Piece Design Ball Valve, Regular Bore Three Piece Design Ball Valve, Reduce Bore Three Piece Design Ball Valve, Three Piece Design Ball Valve Suppliers, Three Piece Design Ball Valve Exporter In India.
3 Piece Design Ball Valve Specification
| Design Standards | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D |
|---|---|
| Inspection & Testing Standard | BS EN ISO 12266 – I (BS 6755 – I) |
| Fire Safe Testing Standard | BS EN ISO 12266 – II / API 607 |
| Flange To Flange Distance | As Per ANSI B 16.10 / Tailor Made on Request |
| End Connection | Flanged End to ANSI B 16.5, Class 150 / 300 / 600, BS 10 Table D / E / F / H, PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64, DIN Standard / JIS Standard / IS Standard |
| Manufacuring Size Range | 1/2" (DN15) to 6"(DN 150) |
| Pressure Rating of Valve | 150# / 300# / 600# / 800#, PN 10 / PN 16 / PN 25 / PN 40 / PN 64 |
| Valve Operation | Manual Hand Lever / Worm-Gear Actuator Operated Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator |
| Body & Insert | ASTM A 216 GR. WCB (Cast Carbon Steel) ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN ASTM A352 Gr. LCA / LCB / LCC NACE MR0175 / NACE MR |
| Ball | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) ASTM A 182 F304 / F316 (SS 304 / SS 316) ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) ASTM A 182 F304L / F316L (SS 304L / SS 316L) ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN |
| Stem | 304 / 316 (SS 304 / SS 316) ASTM A 276 T 304L / 316L (SS 304L / SS 316L) ASTM A 276T ASTM A 276 T – 410 (SS 410) |
| Application & uses |
Power Plants Process Industries Petrochemical Plants Refineries Fertilizers Plants Distillery Plants Sugar Industries Water, Steam, Gas, Oil & Other Non-aggressive media |
Threaded End Three Piece Design Ball Valve, High Pressure Three Piece Design Ball Valve, Industrial Three Piece Ball Valve, Heavy Duty 3 Piece Ball Valve, High-Quality Three Piece Ball Valve, Three Piece Design Ball Valve Stockist In Mumbai.
“View Three piece design ball valve pressure rating, Contact us today to know three piece ball valve best offers & prices.”

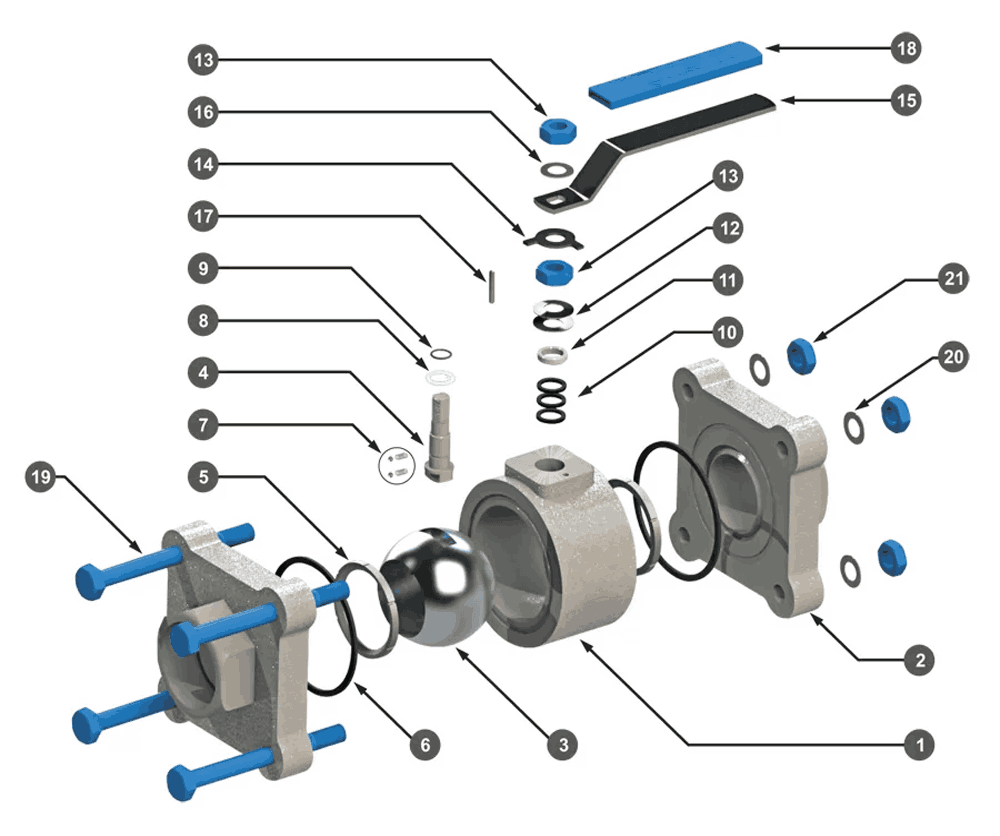

| No. | Component Name | Qty. |
|---|---|---|
| 1 | Body | 1 |
| 2 | Body Adaptor | 2 |
| 3 | Ball | 1 |
| 4 | Stem | 1 |
| 5 | Seat Ring | 2 |
| 6 | Gasket | 2 |
| 7 | Anti-Static Device | 2 |
| 8 | Stem Bottom Bush | 1 |
| 9 | Stem “O” Ring | 1 |
| 10 | Gland Packing | 3 |
| 11 | Gland Bush | 1 |
| 12 | Spring Washer | 2 |
| 13 | Gland Nut | 2 |
| 14 | Lever Stopper | 1 |
| 15 | Lever | 1 |
| 16 | Indicator or Washer | 1 |
| 17 | Stopper Pin | 1 |
| 18 | Lever Grip | 1 |
| 19 | Body Bolt | 4 |
| 20 | Body Washer | 4 |
| 21 | Body Nut | 4 |
| Size | C | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | D | F | E | H | Wt. | DN | NPS | SW | NPT |
| 8 | 1/4 | 62 | 14.6 – 14.2 | 1/4” – 18 | 11 | 38 | 132 | 50 | 1 |
| 10 | 3/8 | 62 | 18.0 – 17.6 | 3/8” – 18 | 11 | 38 | 132 | 50 | 1 |
| 15 | 1/2 | 66 | 22.2 – 21.8 | 1/2” – 14 | 11 | 38 | 132 | 50 | 1 |
| 20 | 3/4 | 75 | 27.6 – 27.2 | 3/4” – 14 | 17 | 46 | 132 | 58 | 1 |
| 25 | 1 | 92 | 34.3 – 33.9 | 1” – 11.5 | 24 | 54 | 162 | 65 | 2 |
| 32 | 11/4 | 114 | 43.1 – 42.7 | 11/4” – 11.5 | 37 | 75 | 192 | 83 | 4 |
| 40 | 11/2 | 114 | 49.2 – 48.8 | 11/2” – 11.5 | 37 | 75 | 192 | 83 | 4 |
| 50 | 2 | 132 | 61.7 – 61.2 | 2” – 11.5 | 49 | 87 | 202 | 94 | 6 |
| 65 | 21/2 | 185 | 74.4 – 73.9 | 21/2” – 8 | 62 | 200 | 390 | 200 | 15.5 |
| 80 | 3 | 208 | 90.3 – 89.8 | 3” – 8 | 74 | 225 | 390 | 225 | 25 |
| 100 | 4 | 240 | 115.7 – 115.2 | 4” – 8 | 98 | 250 | 600 | 250 | 39 |
